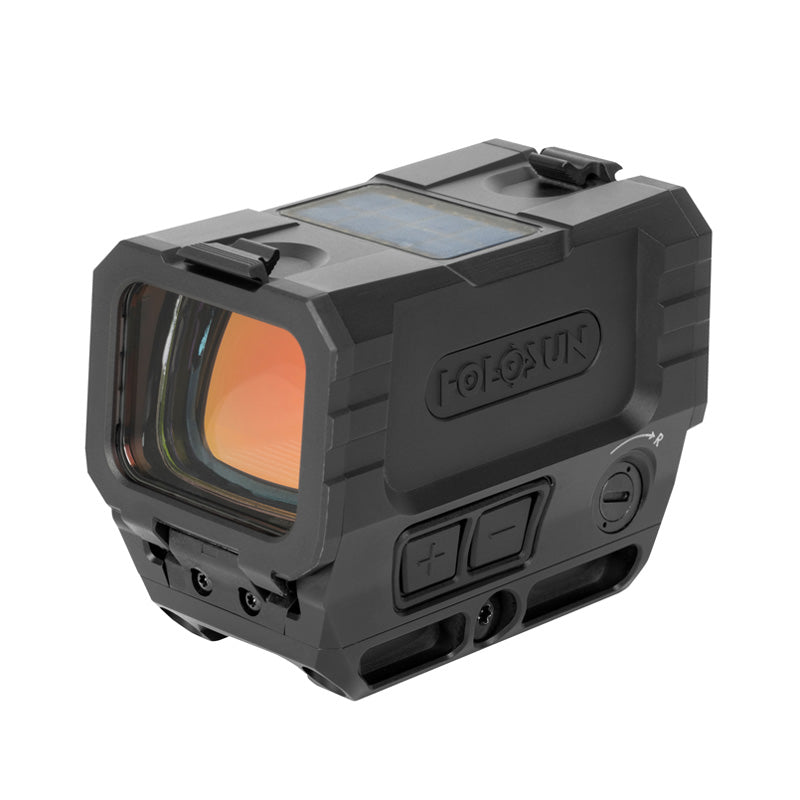

The RONIN-AEMS-MAX is a robustly constructed, enlarged rifle sight designed to provide a maximum field of view. The Ronin AEMS MAX features a large 1.57” × 1.18” objective lens for enhanced shooting performance. Available in RED or GREEN LED models with our innovative Multi-Reticle System (MRS), which features a 2 MOA Dot & 65 MOA ring. The Ronin AEMS MAX is made from 7075 aluminum and includes Shake Awake technology with up to 50k hour battery life.
OPTICAL SPECS
| Reticle | 2 MOA Dot & 65 MOA Circle |
| Light Wavelength | 540nm |
| Reticle Color | Red |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Solar & Battery |
| Battery Type | CR2032 |
| Battery Life (Hours) | 50000 |
| Thermal Modes | N/A |
| Digital Modes | N/A |
| Video Recording | N/A |
| Screen Refresh Rate | N/A |
| Digital Screen | N/A |
| Brightness Setting | 8 DL & 4 NV |
PHYSICAL SPECS
| Window Size (in) | 1.57×1.18 |
| Dimension (in) | 1.94×2.51 |
| Weight (oz) | 10.4 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~65℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
